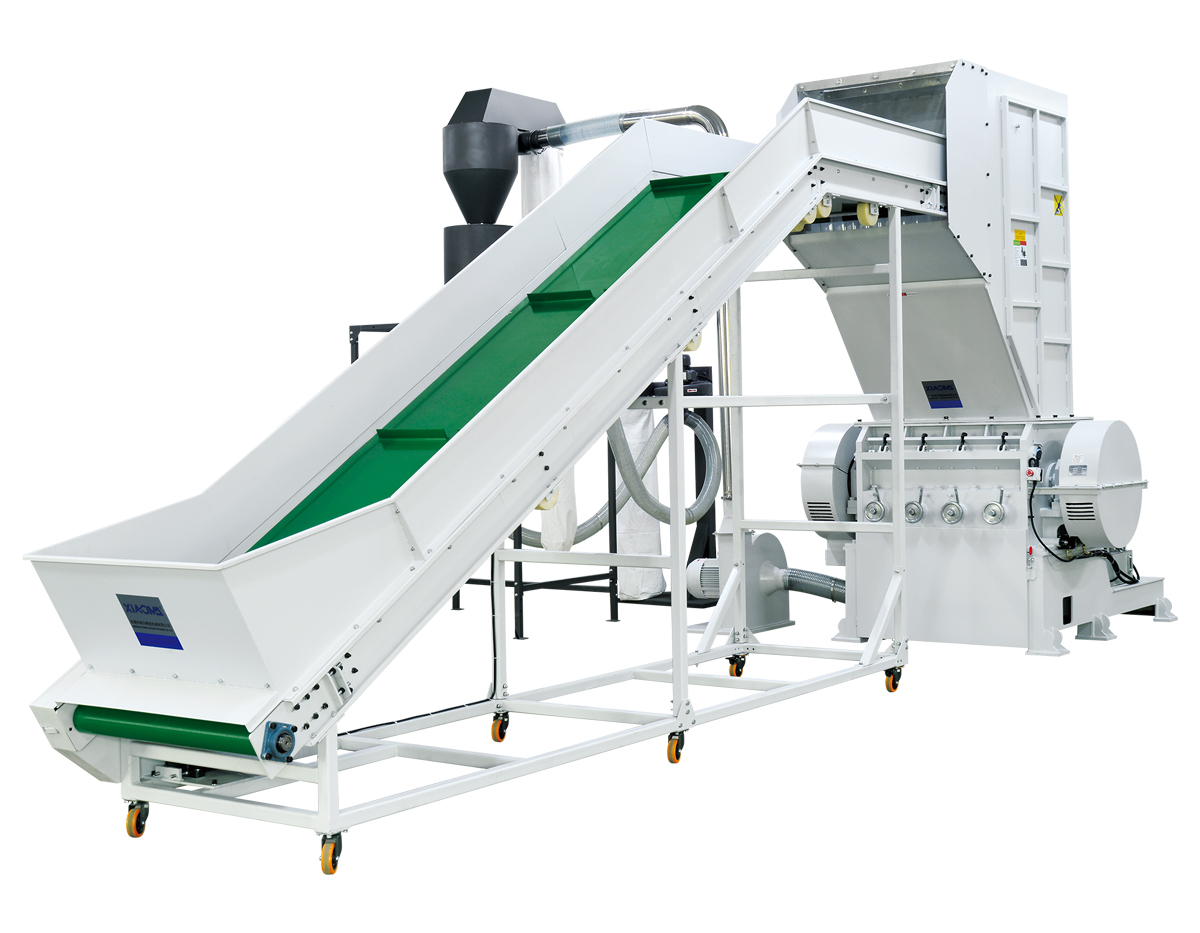

Due to the large size of the large crusher models and the high distance between the feeding port and the ground, there are great difficulties in manual feeding. The traditional operation mode is usually to build a feeding platform or bury the crusher in a pit. Therefore, Xiaoma specially designed a conveyor to be used with XMC and XMD series crushers, which can easily feed the material into the crushing chamber for crushing.
| Model | XMD300/ 300 | XMD300/ 600 | XMD300/ 800 | XMD400/ 600 | XMD400/ 800 | XMD400/ 1000 | XMD500/ 800 | XMD500/ 1000 | XMD600/ 800 | XMD600/ 1100 | XMD800/ 1200 | |
| Drive power | kw | 7.5 | 15 | 22 | 22 | 30 | 37 | 37 | 45 | 45 | 75 | 90-160 |
| Rotor diameter | mm | 300 | 300 | 300 | 400 | 400 | 400 | 500 | 500 | 600 | 600 | 800 |
| Rotor width | mm | 300 | 585 | 785 | 600 | 800 | 1000 | 800 | 1000 | 800 | 1100 | 1200 |
| Number knife | 3*1 | 3*2 | 3*2 | 3*2 | 3*2 | 3*2 | 5*2 | 5*2 | 5*2 | 5*2 | 5*2/7*2 | |
| Number knife | 2*1 | 2*1 | 2*2 | 3*2 | 3*2 | 3*2 | 3*2 | 3*2 | 3*2 | 3*2 | 3*2 | |
| Size | mm | 375*270 | 400*570 | 400*770 | 540*585 | 550*780 | 550*980 | 650*780 | 650*980 | 790*780 | 790*1080 | 1140*1170 |
| Crushing cavity diameter | mm | 370*300 | 370*585 | 370*785 | 490*600 | 490*800 | 490*1000 | 600*800 | 600*1000 | 740*800 | 740*1100 | 950*1200 |
| Weight | kg | 850 | 1100 | 1500 | 2500 | 2800 | 3200 | 3800 | 4200 | 4000 | 6100 | 8500 |
| Screen aperture | mm | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 12 | 12 | 12 |
| Fan Installation | Random body installation External stand-alone installation | |||||||||||
| Dimensions | L*W*H mm | 1350*700 *1800 | 1350*1000 *1850 | 1350*1300 *1850 | 1700*1350 *2250 | 2100*1550 *2500 | 2100*1800 *2500 | 2300*1800 *2900 | 2300*2000 *2900 | 2600*1800 *3300 | 2600*2200 *3300 | 3100*2450 *4100 |
